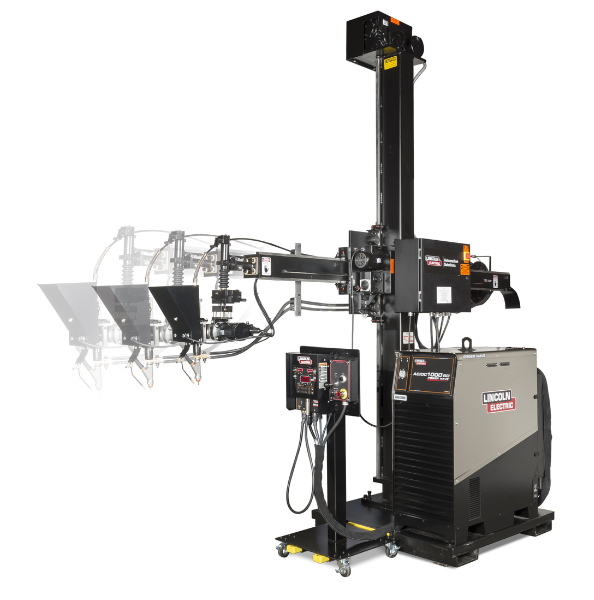

LINCOLN ELECTRIC POWER WAVE® AC/DC 1000SD ADVANCED SUBMERGED ARC WELDER

USUALLY 2-4 WEEKS DELIVERY PLEASE CONTACT US FOR UP TO DATE DELIVERY

Increase Productivity,

Quality and Flexibility The Power Wave® AC/DC 1000® SD delivers Waveform Control Technology® to submerged arc welding. Choose constant current or constant voltage operation and set variable frequency and amplitude.

Software-driven AC, DC positive or DC negative output allows the user to control the deposition rate and penetration.

The result over conventional power sources is increased weld speeds, consistently higher quality welds and improved efficiencies in a single or multi-arc environment.

Processes

DC+ Submerged Arc

DC- Submerged Arc Balanced

AC Submerged Arc Variable

AC Submerged Arc

Key Features

• 380 - 575 VAC, 50/60Hz Voltage Input – Offers the ability to be  connected anywhere in the world.

• Voltage Compensation and Reliable Input Voltage Connection –  Provides consistent operation over ± 10% input voltage variation. • No Hardware Reconfiguration Required with Easy Polarity  Switching – Eliminates downtime.

• Easy to Parallel Machines or Run Multiple Arcs .

• 3-Phase Voltage Input – Eliminates the imbalance associated with transformer-based AC welding machines.

• 95% Power Factor Correction – Enables connection of multiple  machines on the same plant infrastructure for lower installation costs.

• Severe Duty – Can be stored outdoors. IP23 Rated.

• ArcLink®, Ethernet, and DeviceNet™ Communication – Offers  remote process monitoring, control and troubleshooting. Technical

Specifications

• True Energy™ – Measures, calculates and displays instantaneous  energy in the weld for critical heat input calculations.

•  CheckPoint™ – A cloud-based system to view or analyze your welding data. Track equipment usage, store weld data, configure fault limits  and more.

• iARC™ Digital Control - 90 times faster than the previous generation,  delivering a responsive arc.

• Factory Burn-In Tested – At maximum output for 2 hours  to ensure quality and reliability.
